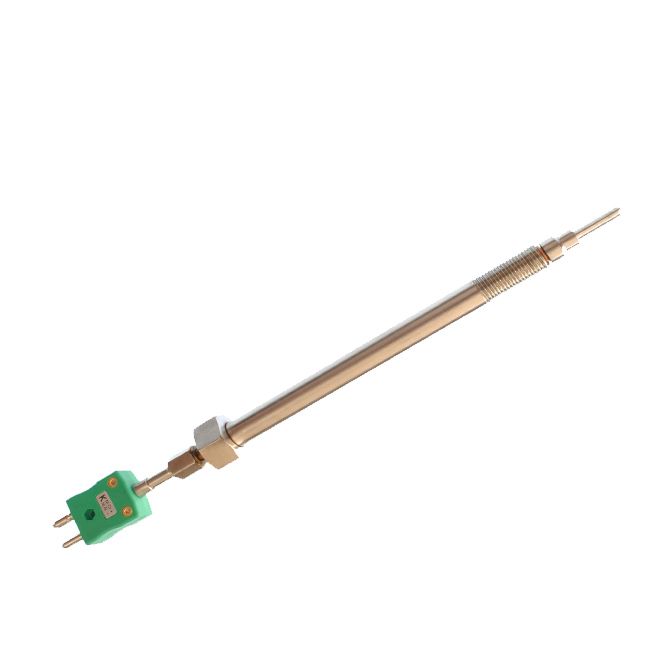

Twist Melt Bolt Thermocouple Type J ou K

Cambiar moneda

SKU
XE-5531
169,09 € 140,91 €
Délai de mise en œuvre:
Select Options
Code tarifaire:
90330000
Pays de fabrication:
GB
Conforme RoHS:
Product Compliance:
Description Générale Rotational blade style tip allowing correct positioning for reduced resistance in the melt flow
Type de capteur Widely used in plastics extruders and injection moulders
Type de thermocouple K or J
Longueur de la sonde 152mm stem length
Matériau de la gaine Stainless steel bolt with 1/2”UNF-20 2A thread
Type de résiliation Standard plug termination (round pin)
Max. Température +400°C
Tolérance Tolerance & colour code in accordance with IEC-584 specification
Thread 1/2”UNF-20 2A thread
Tip 20mm long blade tip immersion length

Labfacility - Company Overview Presentation

Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.



Product Download Icon

Thermocouple Product Guide - Labfacility

An overview of the different thermocouples available from Labfacility.
