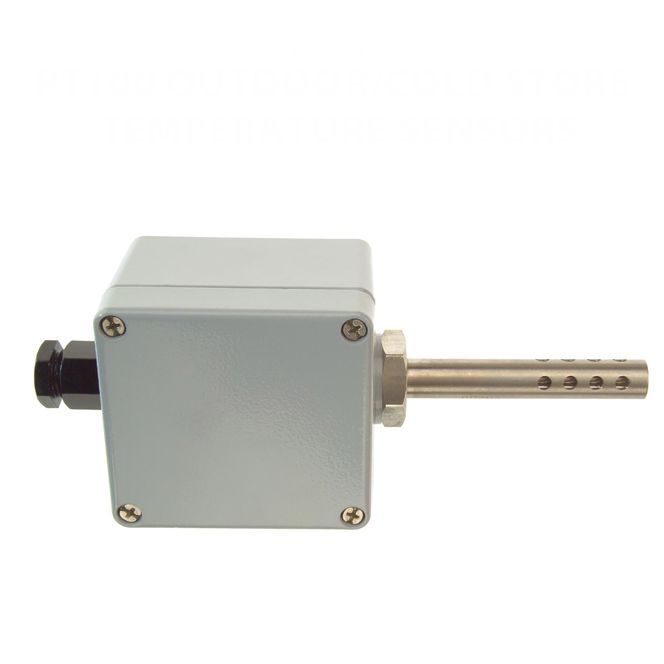

Capteurs de temprature extrieurs / entrepts frigorifiques Pt100 - Type PRT - lment unique
Cambiar moneda
SKU
XE-3673-001
190,97 €
159,14 €
- Buy 2 - 14 for 150,13 € 125,11 € each
- Buy 15+ for 130,14 € 108,45 € each
lment unique 4 fils, permettant la connexion nimporte quel instrument Pt100 2, 3 ou 4 fils.
Pt100 (100 Ohms @ 0C) selon IEC 751, classe B, 4 fils monolment
Spcifications
| Description Générale | Weatherproof IP67 rated wall mounting Pt100 for accurate outdoor air temperature sensing |
|---|---|
| Type de capteur | single element, Pt100 (100 Ohms @ 0°C) to IEC 751, Class B |
| Boîtier | Painted Die-Cast Aluminium Housing L80 x W74 x H54mm |
| Element | Pt100, class B to IEC 751 |
| Matériau de la gaine | Perforated 316 stainless steel probe, 12.7mm x 75mm |
| Gland | M20 cable entry gland |
| Max. Température | 150°C |
| Min. Température | -50°C |
| IP Rating | IP67 |
| Transmitter | Optional transmitter device has an ambient operating range of -40 to +85°C |
| Nombre de fils | 4 |
