Thermocouple isolation minrale avec bouchon miniature IEC - Types K, J, T, N

Cambiar moneda

SKU
XE-3216
19,13 € 15,94 € 25,73 € 21,44 €

Maximum 30 characters

Maximum 40 characters

Délai de mise en œuvre:
Select Options
Code tarifaire:
90330000
Manufacturer:
Labfacility
Pays de fabrication:
GB
Conforme RoHS:
Product Compliance:

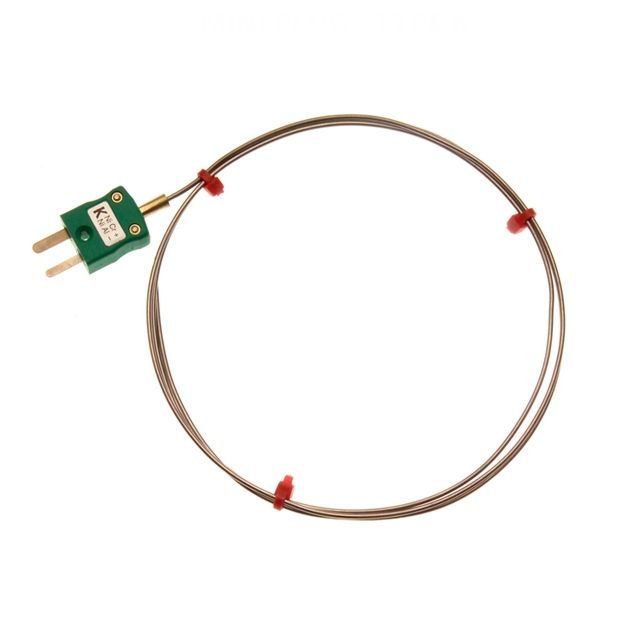

Thermocouple minral isol de type K, J, T ou N. Diffrentes longueurs disponibles, toutes termines par une fiche miniature IEC (220C) pour une connexion simple et rapide.

Traable aux talons dtalonnage ISO17025 (UKAS), Labfacility offre un choix dtalonnage traable en 3 ou 5 points en utilisant notre installation dtalonnage interne, vous pouvez slectionner tous les points de temprature entre -10 C et +200C.

Veuillez noter que si vous ajoutez une option dtalonnage votre commande, cela ajoutera 2-3 jours  votre commande.



Description Générale Highly flexible, sheath can be bent/formed to suit many applications and processes
Type de capteur Mineral Insulated
Type de thermocouple K, J, T & N
Element/hot junction Single element, junction insulated from sheath (offers protection against spurious electrical signals)
Diamètre de la sonde 1.0, 1.5, 2.0 & 3.0mm
Longueur de la sonde 150, 250, 500 & 1000mm
Matériau de la gaine K - Stainless steel 310, J - Stainless steel 321, T - Stainless steel 316, N - Nicrosil
Type de résiliation Miniature flat pin plug, colour coded in accordance IEC 584
Max. Température K +1100°C for 1.5 & 3.0mm diameters +750°C for 1.0mm diameter, J +760°C, T +400°C, N +1300°C. Plug Max. temperature range: 200°C
Min. Température K -40°C, J -100°C, T -100°C, N -100°C
Normes respectées IEC 584
Type de connecteur Plug
Taille du connecteur Miniature
Couleur K - Green, J - Black, T - Brown, N - Pink

Labfacility - Company Overview Presentation

Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.



Product Download Icon

Why is Calibration so important?

The goal of calibration is to minimise any measurement uncertainty by ensuring the accuracy of test equipment. Labfacility offer a 3 or 5 point calibration, Traceable to ISO17025 (UKAS) calibration standards, using our in-house calibration facility.
