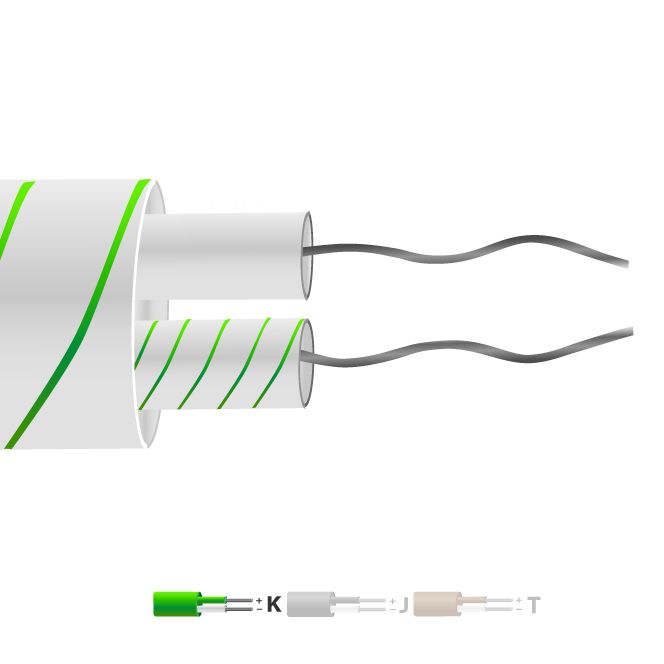

Type K Glassfibre Insulated Flat Pair thermocouple Cable / Wire (IEC)
Cambiar moneda
SKU
XE-2163
7,31 €
6,09 €
Type K Glassfibre Insulated Flat Pair thermocouple Cable / Wire (IEC)
Construction paires plates isoles en fibre de verre, conducteurs poss plat, fibre de verre isole avec une combinaison en fibre de verre, vernis silicone partout. Bonne rsistance la temprature mais ne convient pas l o des fluides sont prsents.
| Description Générale | Good temperature range but will not prevent ingress of fluids. Fairly flexible but does not provide good mechanical protection. |
|---|---|
| Longueur de câble | 5m, 10m, 25m, 50m, 100m |
| Cable Type | Flat pair cable |
| Noyau / Brins | 1/0.3mm / 1/0.508mm / 7/02.mm / 1/0.2mm |
| Conductor Cross Section 1/0.2 (mm2) | 0.032 |
| Conductor Cross Section 1/0.315 (mm2) | 0.078 |
| Conductor Cross Section 1/0.508 (mm2) | 0.203 |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Outer Colour | Green & White |
| + Colour | Green |
| - Colour | White |
| Drain Wire | No |
| Matériau d'isolation | Glassfibre insulated |
| Loop Resistance 1/0.2 (Ohms per combined metre) | 31.8 |
| Loop Resistance 1/0.315 (Ohms per combined metre) | 12.8 |
| Loop Resistance 1/0.508 (Ohms per combined metre) | 4.9 |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 4.5 |
| Max. Température | +350°C (short periods up to 400°C) |
| Min. Température | -60°C |
| + Conductor | Nickel Chromium |
| - Conductor | Nickel Aluminium |
| Screen | No |
| Normes respectées | Colour code (cores & jacket) to IEC-584-3 |
| Type de thermocouple | K |
| Tolérance | Class 2 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
